Quick Answer
Discover the role of building management system heating in optimizing energy use. Learn how BMS can cut costs and improve efficiency.
A building management system (BMS) is defined as a centralised control platform that automates and monitors a building’s mechanical and electrical services, with heating at its core. The industry term is “building management system,” though property managers often encounter it as “building automation system” or BAS. HVAC systems account for 40–60% of a commercial building’s total energy consumption. That single figure explains why the role of building management system heating is the most consequential lever available to property managers seeking to cut costs and meet energy targets. This article explains how BMS heating control works, what it saves, and how to act on it.
How does a building management system control heating?
BMS heating control works by connecting sensors, actuators, and HVAC equipment to a central controller that makes continuous, calculated adjustments. The system reads live data from temperature sensors, CO2 detectors, and occupancy inputs, then instructs boilers, pumps, and air handling units (AHUs) to respond accordingly. This is fundamentally different from a simple timer or thermostat, which reacts only to a single fixed setpoint.
The core control mechanism is the PID loop (Proportional, Integral, Derivative). A PID loop calculates the gap between the current temperature and the target, then adjusts output continuously rather than switching on and off in crude cycles. The result is stable, consistent heat delivery without the energy spikes that come from binary on/off control.
Heating system automation in a BMS typically includes these functions:
- Stop/start logic: The system starts heating only when occupancy or temperature data justifies it. Stop/start logic saves up to 10% on energy consumption alone.
- CO2-based ventilation control: Fresh air supply adjusts to actual occupancy rather than running at full capacity all day. CO2-based ventilation saves up to 20% on ventilation energy.
- Pressure resets: Variable speed drives on pumps and fans respond to real demand. Pressure resets reduce fan energy use by up to 30%.
- Heat recovery: Exhaust air heat is captured and transferred back into the supply air stream, reducing boiler load.
- Fan speed modulation: Rather than running fans at fixed speed, the BMS adjusts speed to match actual load, cutting electricity use significantly.
Pro Tip: Set your BMS to use an optimum start function. This calculates how long the building takes to reach target temperature based on outdoor conditions, starting heating at the latest possible moment rather than at a fixed early time.
| Control strategy | Energy saving potential | Mechanism |
|---|---|---|
| Stop/start logic | Up to 10% | Operates equipment only when occupancy data justifies it |
| CO2-based ventilation | Up to 20% | Matches fresh air supply to actual occupancy levels |
| Pressure resets | Up to 30% | Adjusts fan and pump speed to real system demand |
| Smart thermostat with heat pump | Up to 28% on electricity | Maintains steady low-power operation for peak efficiency |
A BMS also acts as a translator for multi-vendor heating equipment, bringing boilers, pumps, and AHUs from different manufacturers onto a single control platform. Without this, each piece of equipment operates in isolation, and inefficiencies compound across the building.

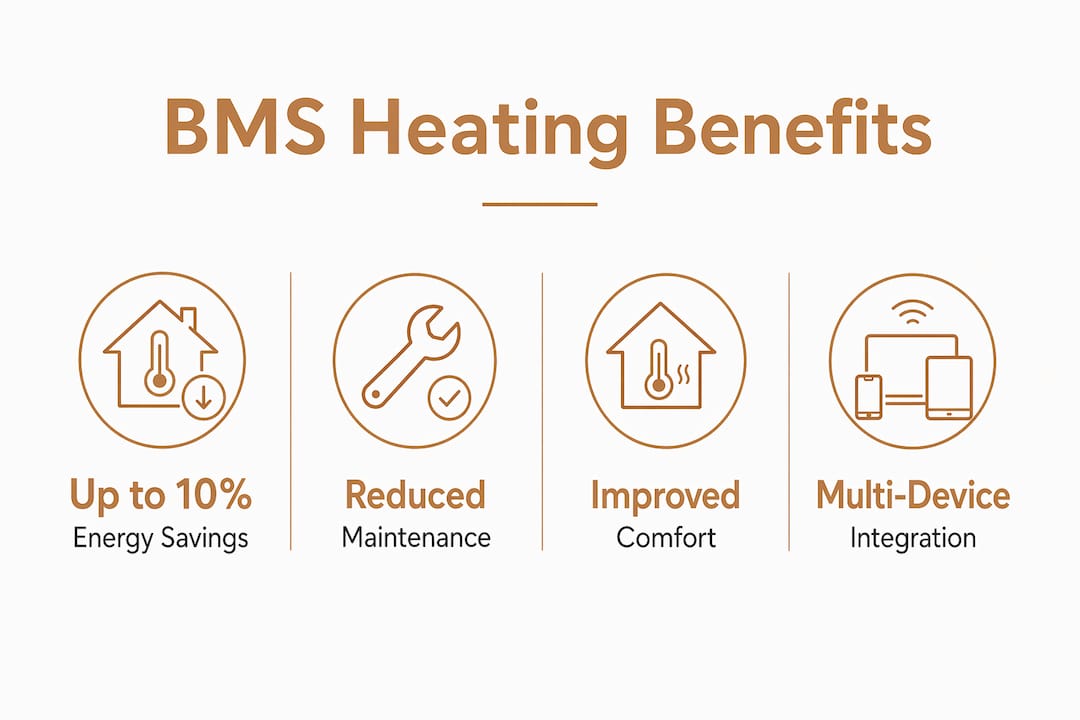

What are the measurable benefits of BMS heating automation?
The financial case for BMS heating control is direct and well-documented. Energy savings from combined control strategies range from 10% to 30% depending on building type and baseline control quality. For a large commercial property in Central London, that translates to tens of thousands of pounds annually.
Smart thermostats paired with heat pumps save up to 28% on electricity costs without reducing occupant comfort. That figure matters because heat pumps are increasingly the heating technology of choice under UK building regulations, and their efficiency depends entirely on how well they are controlled. Heat pumps operate most efficiently in steady, low-power states. A BMS maintains those states by preventing the rapid cycling that wastes energy and accelerates wear.
The benefits extend well beyond the energy bill:
- Reduced carbon emissions: Lower energy consumption directly reduces a building’s CO2 output, supporting compliance with the UK’s net zero commitments and MEES (Minimum Energy Efficiency Standards) regulations.
- Extended equipment lifespan: Stable, demand-led operation puts less mechanical stress on boilers, pumps, and AHUs. Fewer stress cycles mean fewer breakdowns and longer service intervals.
- Fewer emergency repairs: Proactive BMS monitoring catches developing faults before they become failures, reducing unplanned maintenance costs.
- Improved occupant comfort: Consistent temperature control across zones means fewer complaints from tenants or staff, which directly affects lease renewals and building reputation.
For property managers overseeing high-value assets, comfort and reliability carry weight beyond the energy saving alone. A building that maintains consistent temperatures without manual intervention is a building that retains tenants and commands premium rents. The heating system redesign case study from Rareplumbing illustrates how targeted control improvements deliver measurable results in residential and commercial properties alike.
How does BMS shift heating management from reactive to proactive?
The fundamental shift a BMS delivers is moving from reactive to proactive maintenance. Without centralised monitoring, a boiler failure is discovered when the building goes cold. With a BMS, the conditions that precede that failure are visible days or weeks in advance.
BMS enables proactive maintenance by detecting equipment anomalies such as bearing wear, pressure drops, and abnormal current draws before they cause failures. A pump drawing higher current than its baseline reading is a pump approaching failure. A boiler cycling more frequently than normal is a boiler with a developing fault. The BMS logs both and raises an alert.
Practical monitoring points that every BMS heating setup should track include:
- Pump motor current versus baseline
- Boiler flow and return temperature differential
- System pressure trends over time
- Heat exchanger performance ratios
- Zone valve response times
Pro Tip: Alarm fatigue is a real risk on new BMS installations. Set up a clear alert hierarchy from day one: critical mechanical failures at the top, comfort deviations at the bottom. If every alert demands the same attention, the important ones get missed.
Historical data is the other major asset. A BMS that has been running for six months holds a detailed record of how the building heats under different weather conditions, occupancy patterns, and seasonal loads. Maintenance teams can use that data to schedule servicing at the right intervals rather than defaulting to calendar-based routines that may be too frequent or not frequent enough. This is what proactive heating management looks like in practice.
What steps should property managers take to implement BMS heating controls?
Retrofitting BMS heating controls does not require replacing all mechanical plant. Retrofitting typically involves upgrading controllers and sensors rather than full mechanical replacement, which keeps costs significantly lower than a complete system overhaul.
A practical implementation sequence for property managers looks like this:
- Audit existing controls. Map every piece of heating equipment, its current control method, and its age. Identify which items already have digital inputs and which require new sensors or actuators.
- Prioritise critical controllers. Start with the equipment that has the greatest energy impact: boilers, primary pumps, and AHUs. Secondary zone controls can follow in a later phase.
- Upgrade control logic before hardware. In many buildings, the physical plant is adequate but the control sequences are outdated. Reprogramming PID loops and adding optimum start functions often delivers significant savings before a single piece of hardware is replaced.
- Integrate under a single platform. Multi-vendor equipment integration is achievable using open protocols such as BACnet and Modbus. Insist on open protocol compatibility when specifying any new equipment.
- Commission and verify. After integration, run the system through a full seasonal cycle and verify that control sequences perform as designed. Adjust PID parameters based on real building response.
One failure mode that catches many property managers off guard is “system fighting.” System fighting occurs when heating and cooling run simultaneously because their control loops are disconnected. A BMS with unified PID logic prevents this by calculating real load demand and coordinating heating and cooling outputs. Without that coordination, the two systems work against each other and waste energy continuously.
For buildings with underfloor heating systems, BMS integration requires particular attention to flow temperature setpoints. Underfloor systems operate at lower flow temperatures than radiator circuits, and mixing the two without proper sequencing in the control logic creates exactly the kind of inefficiency a BMS is designed to prevent.
Key takeaways
A BMS is the single most effective tool for reducing heating energy costs in commercial and managed residential buildings, delivering savings of 10–30% through coordinated automation.
| Point | Details |
|---|---|
| HVAC dominates energy use | Heating and cooling account for 40–60% of commercial building energy, making BMS control the highest-impact intervention. |
| Multiple strategies compound savings | Stop/start logic, CO2 ventilation, and pressure resets each save 10–30%; combined, they transform building performance. |
| Proactive beats reactive | BMS fault detection identifies pump wear and pressure drops before failures occur, cutting emergency repair costs. |
| Retrofitting is cost-effective | Upgrading controllers and sensors rather than replacing plant delivers BMS benefits at a fraction of full replacement cost. |
| System fighting wastes energy | Unified BMS control loops prevent heating and cooling from running simultaneously, eliminating a common hidden energy drain. |
Why I think most buildings are still leaving money on the table
After working with heating systems across Central London properties for over 25 years, the pattern I see most often is a BMS that was installed correctly but never properly commissioned. The hardware is there. The sensors are wired. But the control sequences are still running on the default parameters set during installation, which were never tuned to how the building actually behaves.
The buildings that get the most from their BMS are the ones where someone took the time to understand the heating load profile, adjust the PID parameters after the first winter, and set up a sensible alarm hierarchy. That is not a technology problem. It is a management discipline problem.
The shift to heat pumps makes this more urgent, not less. Heat pumps are unforgiving of poor control. Run them in stop/start cycles with a badly configured BMS and you will see higher electricity bills and shorter equipment life than a well-maintained gas boiler would have produced. The technology is only as good as the control logic behind it.
My honest advice to property managers is this: before spending on new equipment, spend a day with your BMS engineer reviewing the control sequences that are actually running. The savings are often already built into the system. They just need someone to switch them on properly.
— Paresh
How Rareplumbing supports BMS-compatible heating in London
Rareplumbing works with property managers and building owners across Central London to install, integrate, and maintain heating systems that are fully compatible with building management platforms.
Whether you are retrofitting controls on an existing commercial property or specifying a new heating installation from scratch, Rareplumbing’s Gas Safe registered engineers bring over 25 years of experience to every project. The team handles BMS-compatible heating installations across Central London, including boiler upgrades, Heatmiser smart controls, and underfloor heating integration. Fixed quotes are provided before any work begins, so there are no unexpected costs on high-value properties. Contact Rareplumbing to discuss your building’s heating requirements.
FAQ
What is the role of a BMS in building heating?
A BMS controls and automates heating equipment using sensors, PID loops, and actuators to maintain target temperatures efficiently. It reduces energy waste by adjusting output to real demand rather than fixed schedules.
How much energy can a BMS save on heating?
Combined BMS control strategies including stop/start logic, CO2-based ventilation, and pressure resets can reduce heating energy use by 10–30% depending on the building and its baseline controls.
Can a BMS work with existing heating equipment?
Retrofitting a BMS typically involves upgrading controllers and sensors rather than replacing mechanical plant, making it a cost-effective option for most existing buildings with compatible or open-protocol equipment.
What is “system fighting” in a BMS context?
System fighting occurs when heating and cooling run simultaneously due to disconnected control logic. A BMS with unified PID loops prevents this by calculating real load demand and coordinating both systems.
How does a BMS support heat pump efficiency?
Heat pumps operate most efficiently in steady, low-power states. A BMS maintains those conditions by preventing rapid cycling, which extends equipment lifespan and reduces electricity consumption by up to 28%.
